Photograph:

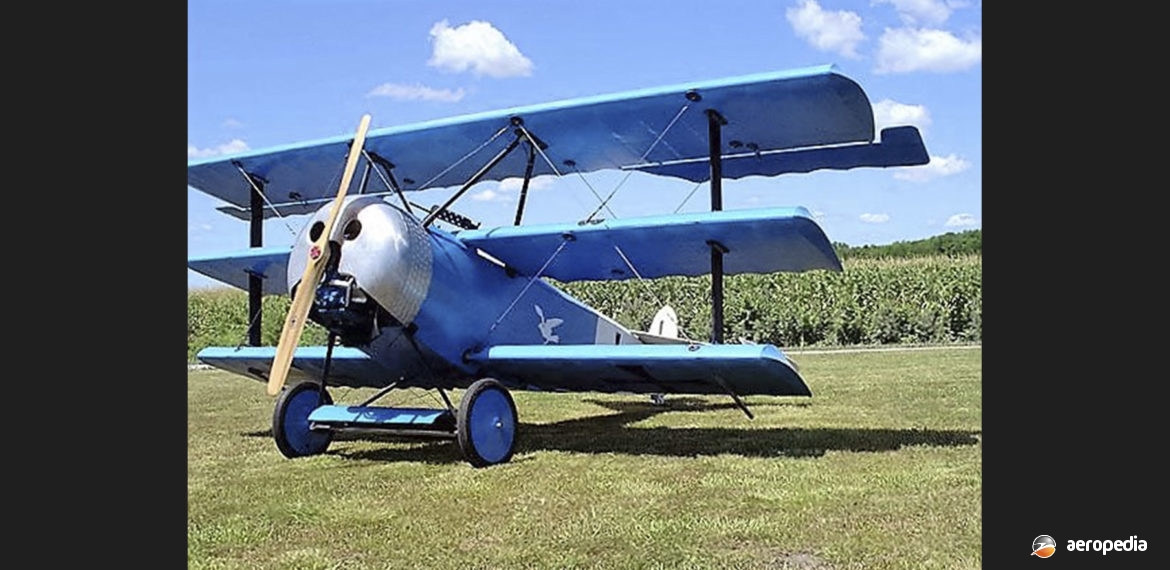

An American registered Airdrome Aeroplanes Fokker Dr.1 (Airdrome Aeroplanes)
Country of origin:
United States of America
Description:
Single-seat light sport aircraft
Power Plant:
One 39 kw (52 hp) Rotax 503UL two-cylinder air-cooled engine
Specifications:
- Wingspan: 5.39 m (17 ft 7 in)
- Wing area max speed: 126 km/h (78 mph)
- Cruising speed: 103 km/h (64 mph)
- Stalling speed: 55 km/h (34 mph)
- Rate of climb: 290 m/min (950 ft/min)
- Service ceiling: 3,048 m (10,000 ft)
- Take-off run: 61 m (200 ft)
- Landing run: 91 m (300 ft)
- Range: 402 km (250 miles)
- Fuel capacity: 19 litres (4.16 Imp gals)
- Empty weight: 155 kg (341 lb)
- Loaded weight: 288 kg (634 lb)
History:
The Airdrome Aeroplanes Fokker Dr.1 was a 75% scale replica of the famous Triplane World War I fighter and has been supplied to the builder in kit form. It was of aluminium tubular construction and had removable three-piece wings which were transportable. It was available in quick-build form and used a modern two-stroke engine. It has been described as light and responsive on the controls. The type was one of a number of scale replica fighter aircraft from World War I produced by the company at its facility in Holden, Missouri, USA.
Examples completed in Australia registered under RAA Regulations include 19-7754 fitted with a Rotec R-2800 radial engine and 19-7379 (c/n DR1007) fitted with an AeroVEE 2180 engine. One example made a forced landing near Gatton, QLD in the Lockyer Valley on 1 July 2017.
Airdrome Aeroplanes has also produced a 100% scale variant of the Dr.1 in kit form for construction and an example of this model arrived at Whitianga in New Zealand in January 2017 for construction.
